FYD7 3.0

Applicable occasions:5-10cm deep back-lit light box
  • 3030

  • 160°

  • 5 Years

  • DC 24V

  • IP65

  • 80

  • E318168

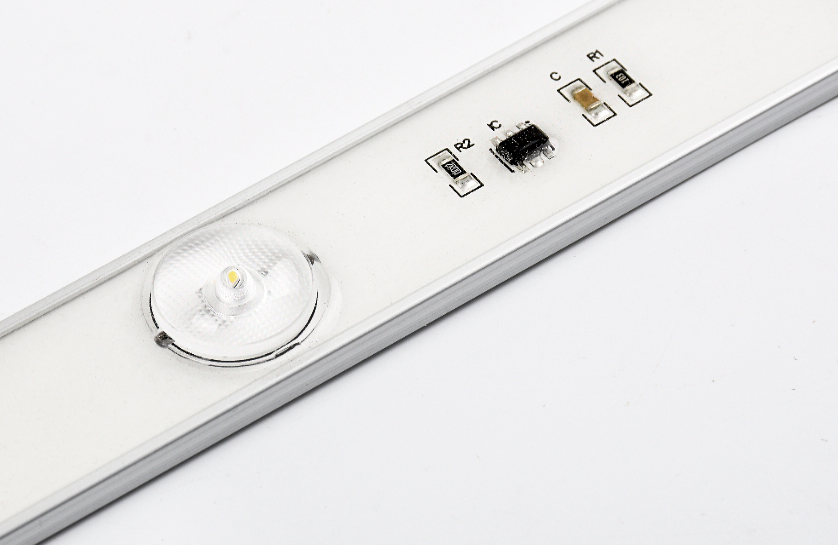

-Nichia LED with Vf=6V, high-power 1W, 3030 package
-Aluminum PCB adopted,for better heat diffusion
-Good Back light source with high brightness and uniform light
-Reversed polarity connect protection, no damage to bar if positive and negative connection reversed
-Adopt WOGO 2060 connector or AMPR connector(Female/male), more convenient for installation
-Constant current IC: Ensure the stability of the product performance and less brightness decay

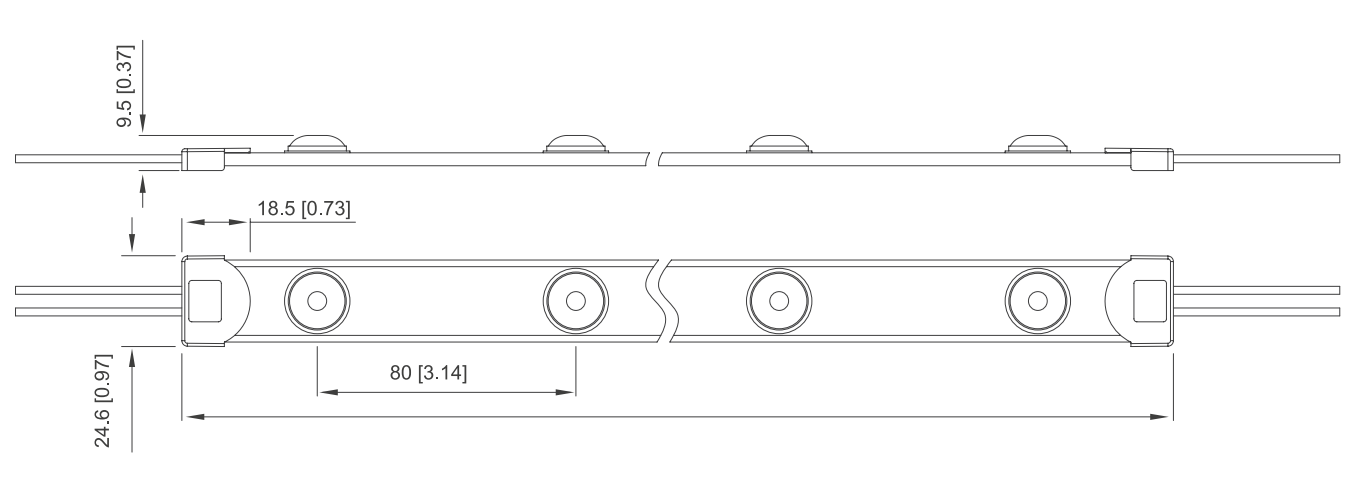

Structure size

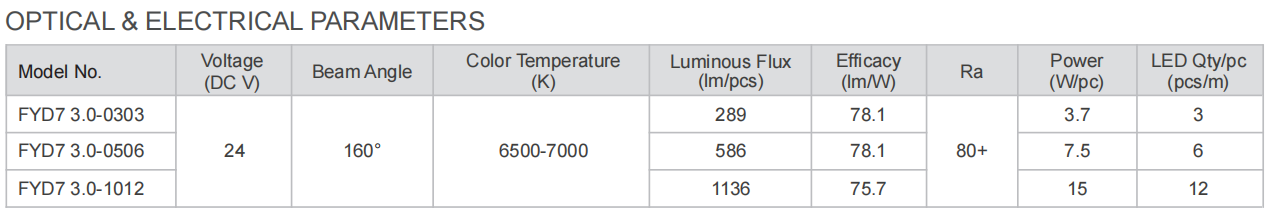

Detailed parameters



Product documentation
