QBPS

Applicable occasions:20-30cm double sided signage lighting box;
12-15cm one side signage lighting box

Colour

2525
10*60°
3 Years
DC 24V
IP66
80

-Input voltage: DC24V
-CREE single color LED, color mixing well, excellent light performance and stability
-Can be connected with external controller, and achieve full-color effect
-Beam angle 10*60°, better light effect and longer shooting distance
-Aluminum PCB and backside with heat conductive adhesive tape, better heat diffusion

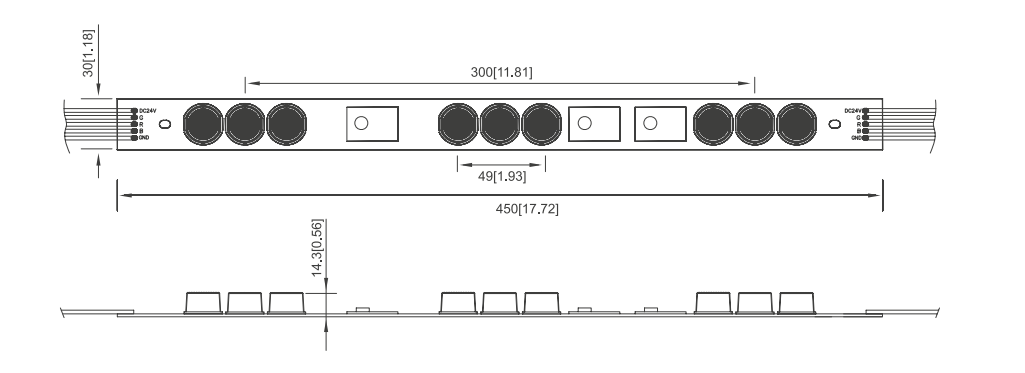

Structure size

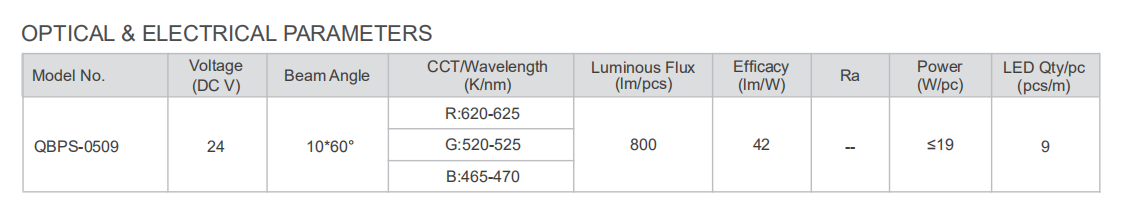

Parameters
Documentation

Structure size

Detailed parameters

Product documentation

QBPS.pdf
