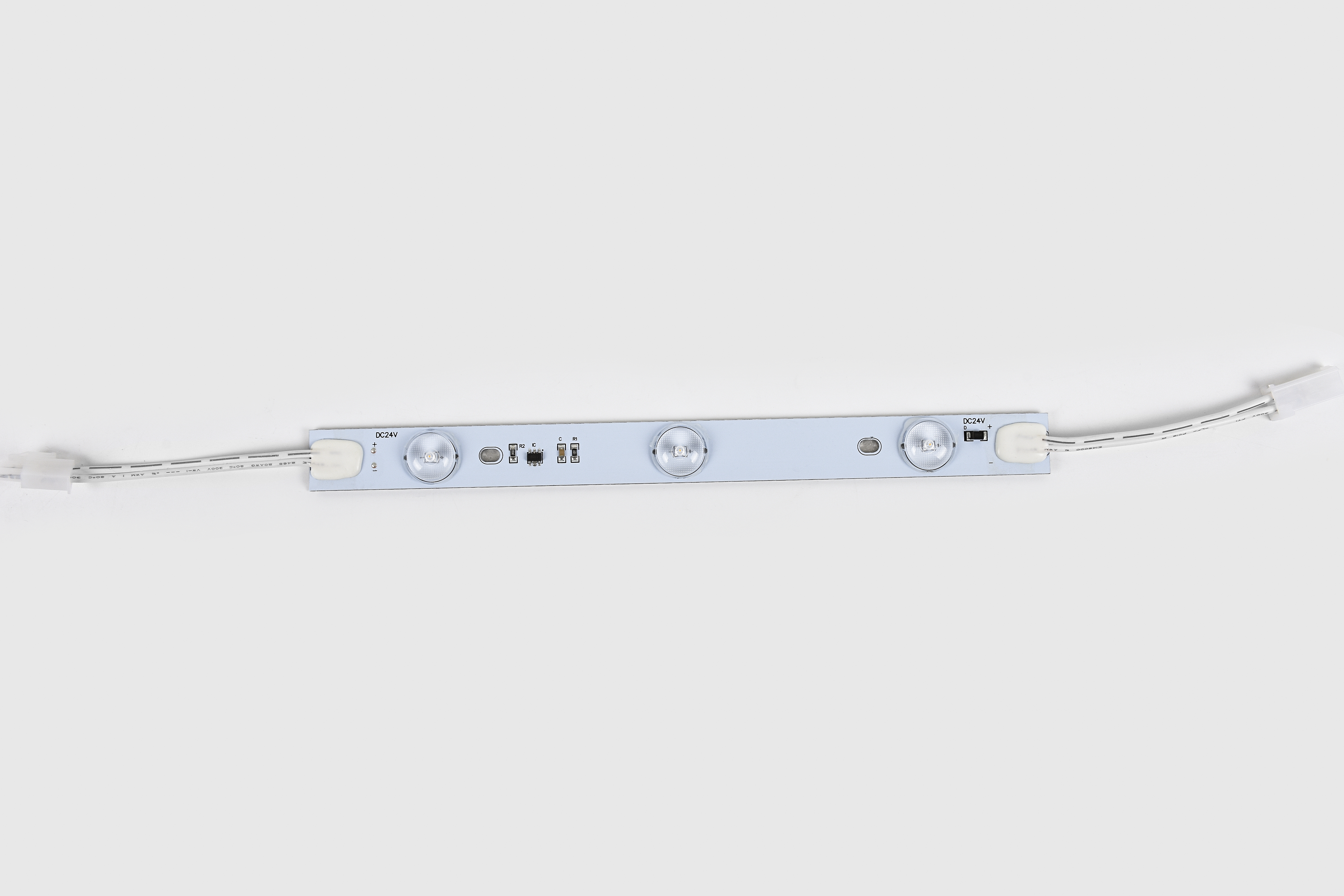

YD8 1.0
Applicable occasions:5-10cm deep back-lit light box
3030
160°
5 Years
DC 24V
IP60
80
E318168
-Adopt Nichia 3030 SMD LED.
-Secondary optical lens with 160° beam angle
-High efficacy up to 116lm/W
-SA-01 connector, no distinguish female or male, easier for installation
Aluminum PCB for better heat dissipation

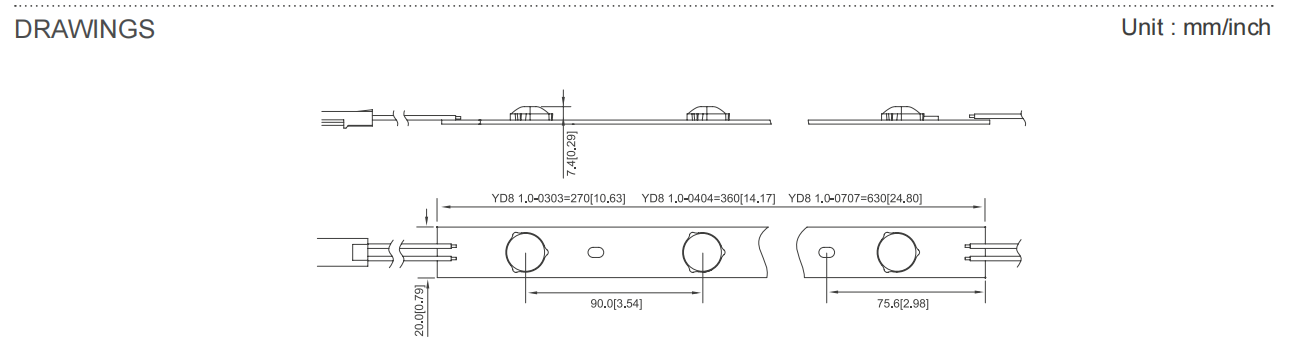

Specification: 3 LEDs/ 270mm, 4 LEDs/ 360mm, 7 LEDs/630mm
-Secondary optical lens with 160° beam angle
-High efficacy up to 116lm/W
-SA-01 connector, no distinguish female or male, easier for installation
Aluminum PCB for better heat dissipation
Specification: 3 LEDs/ 270mm, 4 LEDs/ 360mm, 7 LEDs/630mm
