H150-W-FN-H2835T-200-24

Applicable occasions:Back-lit lightbox with depth above 4cm, curved wall, ceiling etc.
#fff
  • 2835

  • 120

  • 3 Years

  • DC 24V

  • IP22/64

  • 90/95

  • E354137

-Efficacy: CRI90+ up to 150lm/w, CRI95+ up to 132lm/w.
-CRI/TM-30-15: CR1>95 / (Rf>93-Rg>99, R9>94) CR1>90 / (Rf>90-Rg>99, R9>65).
-Color Consistency : 3SDCM (typical).
-Waterproof: IP64 (Spray Glue Coated).
-Lumen Maintenance: 55°C: L70/B10>54000hrs, lumen maintenance 88.51%, L90/B10>47000hrs, lumen maintenance 89.95%.
-Lumen Maintenance: 85°C: L70/B10>54000hrs, lumen maintenance 86.01%, L90/B10>38000hrs, lumen maintenance 89.95% .
-Warranty: 3year.
-Mounting: double-side thermal conductive adhesive tape or 9080H 3M self adhesive tape.
Dimmable: PWM, 0-10V, DALI, DMX available.

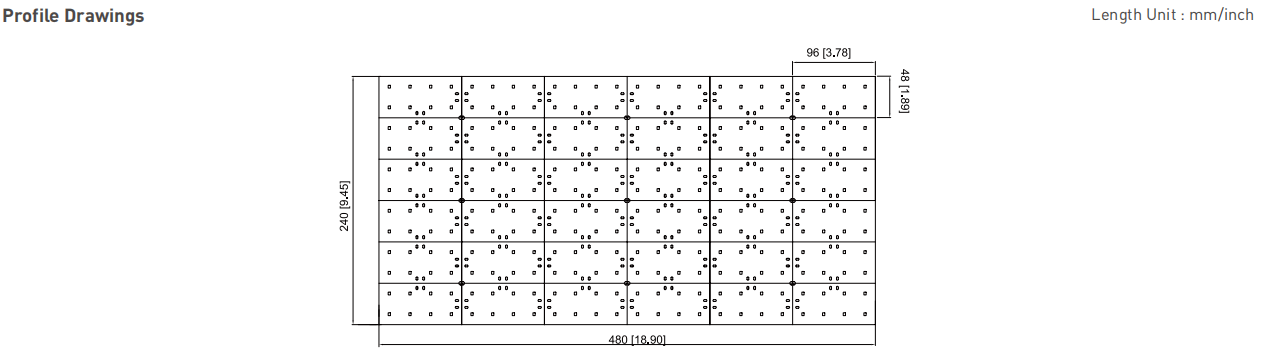

Structure size

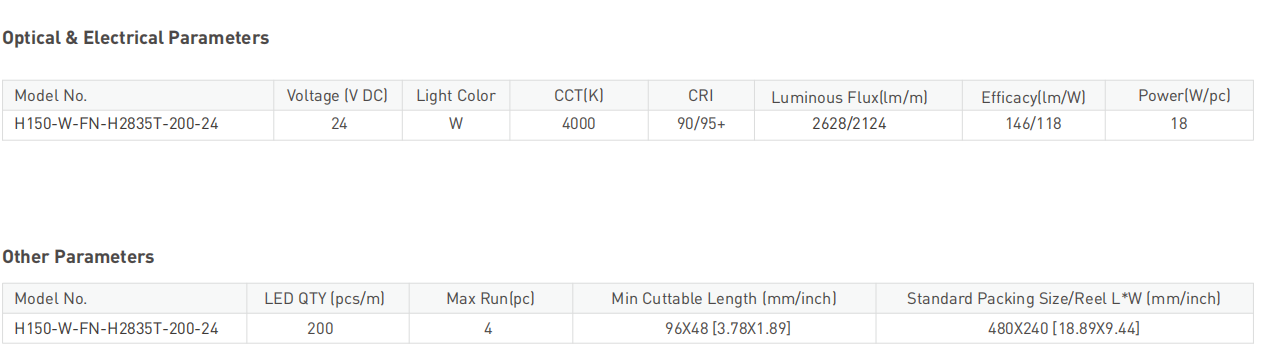

Detailed parameters


Product documentation
