A1 2.0

Applicable occasions:15-20 cm deep back-lit light box
  • 2835

  • 120°

  • 3 Years

  • AC 85-240V

  • IP66

  • 70

-220V AC direct, eliminating the need and failure of DC driver.
-Aluminum PCB with PC cover, IP66 suitable for outdoor use.
-High efficiency & high power factor with PF>0.9,η>90%.
-Wide input voltage range from 85-240VAC.
-Power supply with filling and solidifying technology, safe and environmental protection.
-Two length in 0.6m & 1.2m for option
-6PCS a group, single bar cuttable

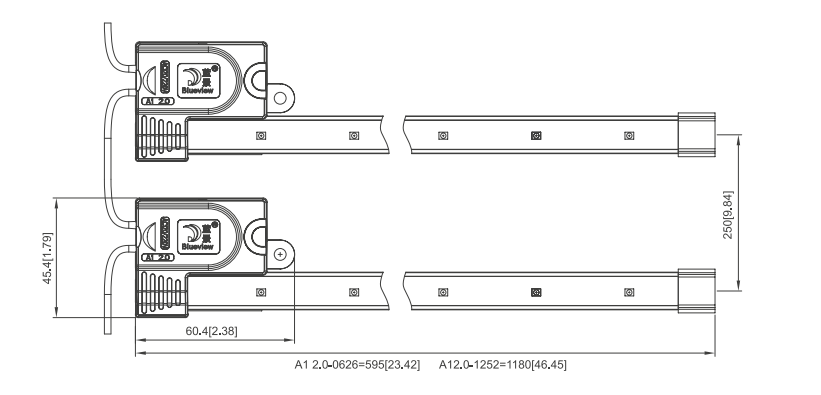

Structure size

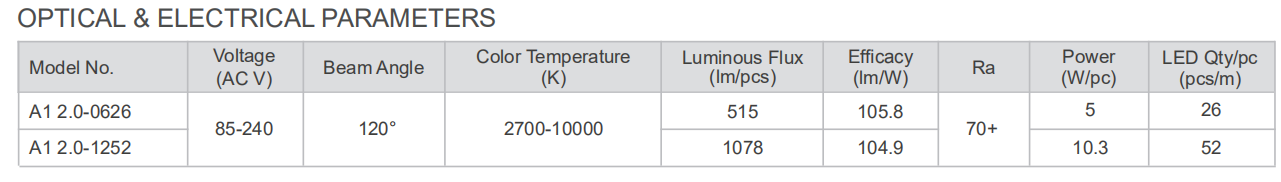

Detailed parameters


Product documentation
